Universal Expansion joints

With multi-ply stainless steel bellows; available in versions for internal sleeves, special materials and other varying flange tube designs.

In our standard range, we offer 3 expansion joint types per pressure stage and nominal diameter, which differ in terms of low, medium and high absorption of movements. Standard types can be tailored easily to your individual needs.

Do you need a special design? Please get in touch with us.

HYDRA universal expansion joints standard program

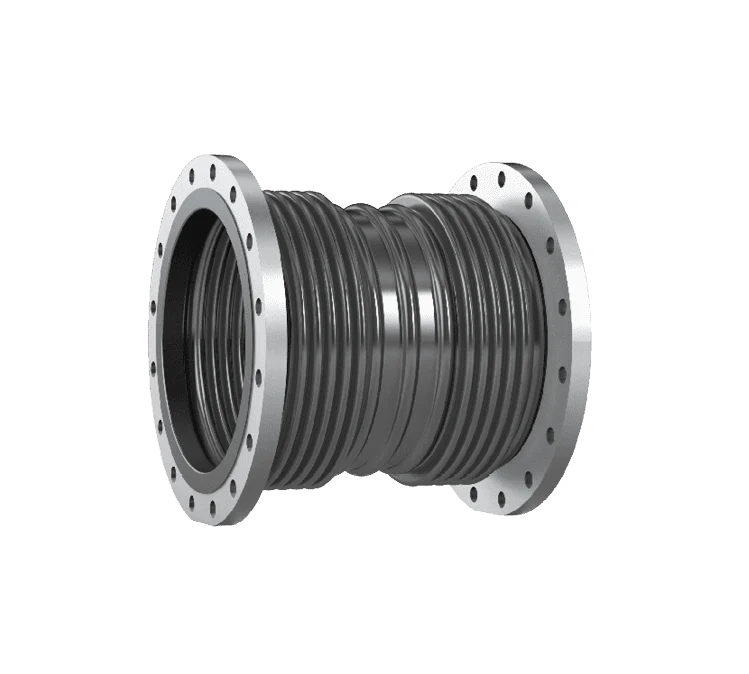

Type UBN

Universal expansion joints with swivel flanges

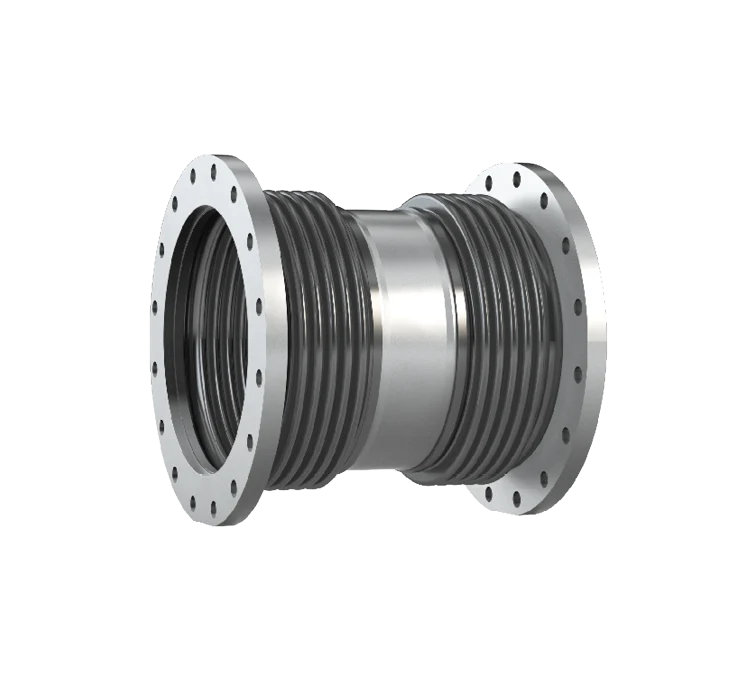

Type UFN

Universal expansion joints with plain fixed flanges

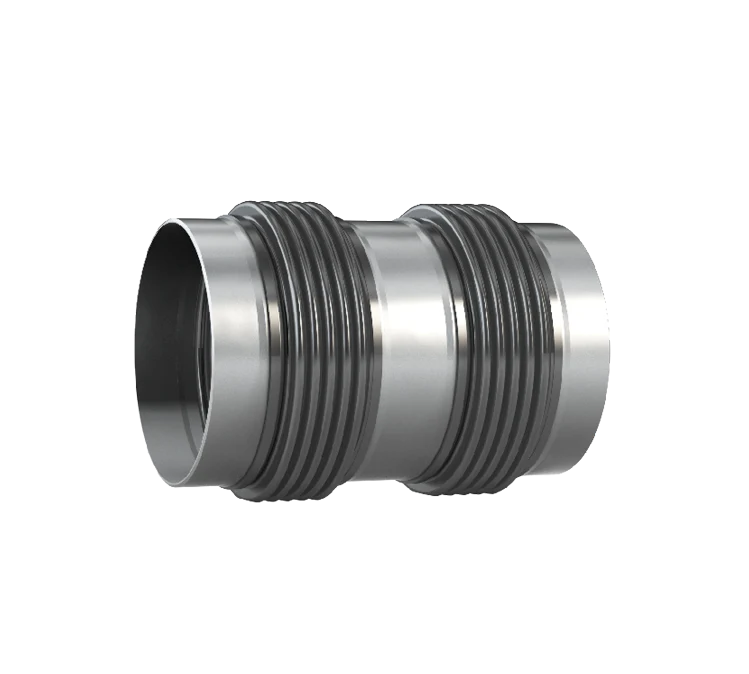

Type URN

Universal expansion joints with welding ends

HYDRA universal expansion joints standard program - low pressure

TYPE UBN - low pressure

Universal expansion joints for low pressure (exhaust) with swivelling flanges

Type UFN - low pressure

Universal expansion joints for low pressure (exhaust gas) with plain fixed flanges

Type URN - low pressure

Universal expansion joints for low pressure (exhaust gas) with welding ends

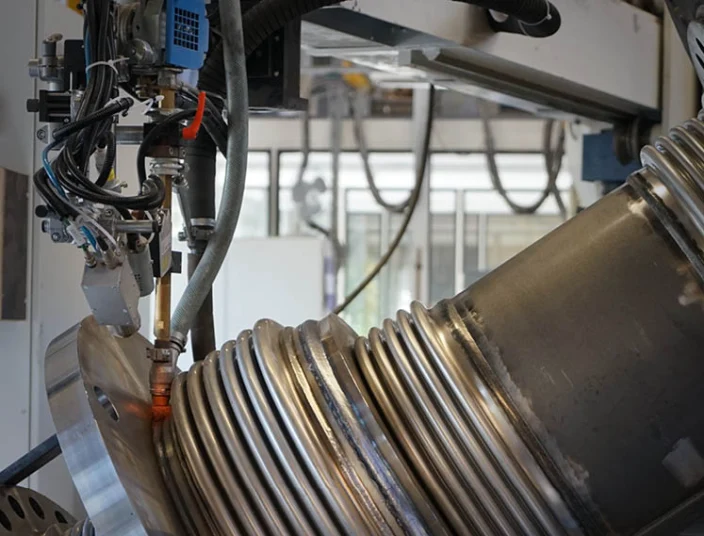

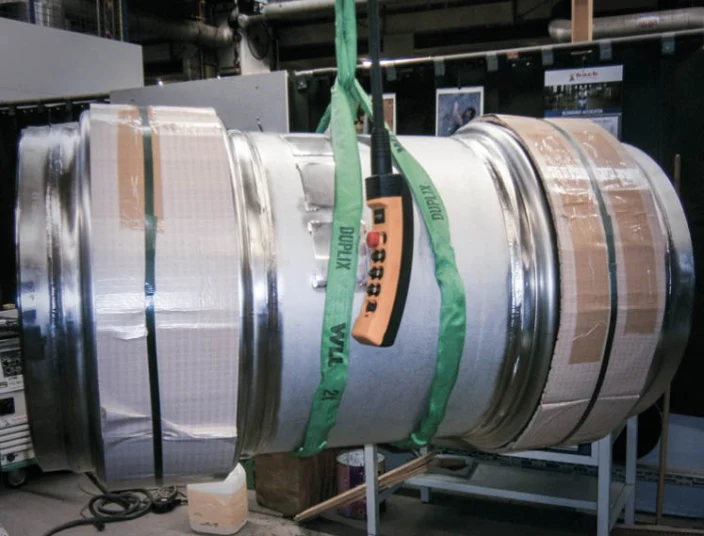

CUSTOMISED SOLUTIONS

We can do more than just standard. We also find solutions for your demands.

4 HYDRA expansion joints (pdf | 1.34 MB)

for nuclear steam pipelines

HYDRA universal expansion joints (pdf | 1.37 MB)

for a solar power plant

We are engineering partners for all industrial sectors
